Fiberglass and Carbon Fiber Continuous Sucker Rods

The composite material continuous sucker rod is made of carbon fiber as the main reinforcing material by way of pultrusion.

MOQ: No minimum order quantity

Price: Negotiable

Delivery Time: 20-25 days

Payment: TT, L/C

Supply Ability: 1000000 pcs/ month

Classification：

Squeezing and Pulling Products

Whatsapp
Email
Inquiry

BACK

Description

The composite material continuous sucker rod is made of carbon fiber as the main reinforcing material by way of pultrusion.

◣ Scope of Production

Φ16mm-Φ25mm

Can be designed and customized according to customers' requirements.

◣ Product Standards

SY/T 6585-2019 Continuous Sucker Rod

◣ Applications

Corrosion well, deep well, ultra deep well, eccentric wear well, electric pump well and most conventional oil wells.

◣ Product Characteristics

Light weight, high strength, corrosion resistance, eccentric wear resistant.

System Matching

◎ Optimization scheme 1

Original surface facilities + carbon fiber continuous sucker rod downhole system

◎ Optimization scheme 2

Light pumping unit + long stroke oil pump + carbon fiber continuous sucker rod system

1. Light pumping unit

Compared with the same type of beam pumping unit, the weight is reduced by 50%, the stroke is increased by 48%, and the ground efficiency is increased by 5%.

2. Long stroke oil pump

When the pump length is increased to 12M, the service life of anti-corrosion pump is extended by more than 50%, and the pump efficiency of carbon rod system in deep wells can be increased by more than 10%.

◎ Supporting operation equipment, logistics equipment and design analysis software

◣ Parameter

Diameter	Breaking load	Setting depth	Temperature resistance
mm	KN	m	℃
16	260	1500	≤ 150
19	370	2000
22	500	3000
25	650	4000

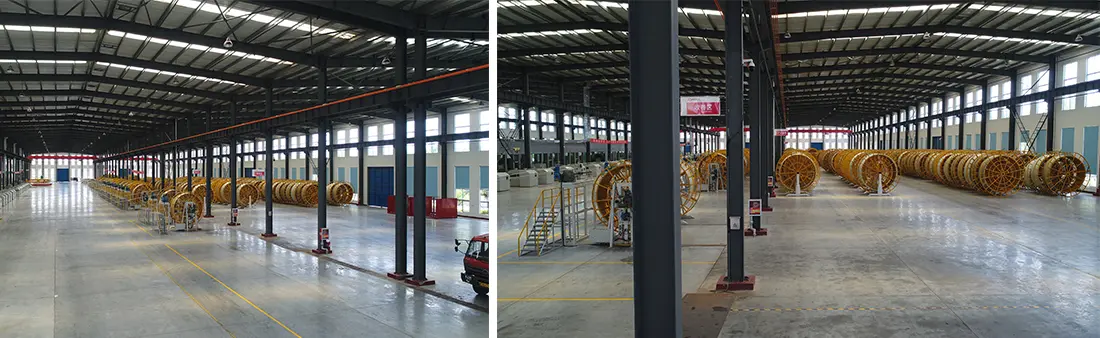

◣ Product Warehouse

◣ Enterprise Strength

Shengli Xinda New Material Co., Ltd. (hereinafter referred to as "Shengli Xinda Company") is a high-tech enterprise in the field of new materials, involving two major industries: composite material industry and anti-corrosion industry. Its markets are found in PetroChina, Sinopec, municipal field, military industry, coalbed methane, electricity, marine, rail transit, spaceflight etc..

◣ Enterprise ualification

Shengli Xinda Company is the top three comprehensive strength enterprise of composite material published by CCIA, the champion of composite material pipes accredited by the Ministry of Industry and Information Technology of the People's Republic of China, the National Intellectual Property Demonstration Enterprise and is one of the winners of the 5th Dongying mayor quality award. Shengli Xinda Company has CNAS national accredited laboratory and many provincial technology R&D platforms such as provincial demonstration engineering technology research center, engineering technology center, enterprise technology center and post-doctoral innovation practice base. In recent years, the company has not only undertaken 6 national-level science and technology projects, more than 60 provincial-level and Sinopec-level science and technology projects, and more than 50 city-level and Shengli Oilfield-level science and technology projects, but also dominated and participated in compiling 9 national-level technical standards. The company is an AA level enterprise of credit audit rating from Commercial Credit Center, a trustworthy enterprise with standardized good behavior of Shandong Province. The company has passed API certification of American Petroleum Institute, GJB certification, ISO, CCS certification. “Xinda” trademark is the national famous trademark.
