GRE Tubing

Composite oil hose is prepared by twisting and high temperature curing with high strength glass fiber untwisted roving as reinforcing material and epoxy resin as matrix material.

MOQ: No minimum order quantity

Price: Negotiable

Delivery Time: 20-25 days

Payment: TT, L/C

Supply Ability: 1000000 pcs/ month

Classification：

Pipe

Whatsapp
Email
Inquiry

BACK

Description

Composite oil hose is prepared by twisting and high temperature curing with high strength glass fiber untwisted roving as reinforcing material and epoxy resin as matrix material.
◣ Production Range
Diameter: DN32-DN300;
Pressure level: 0-20MPa;
Can be designed and produced according to customers' requirements.

◣ Execution Standard
SY/T 7043-2016 High-pressure fiberglass oil pipe
API 15HR-2016 High-pressure fiberglass line pipe
ISO 14692-2017 Glass fiber reinforced plastic pipe for oil and gas industry

◣ Product Characteristics
Corrosion-resistant, non-scaling, non-waxing, strong designability, good insulation performance, convenient installation.
◣ Parameter

Spec.	Pressure rating	Thread spec.	Nominal ID	Couping OD	Nominal weight	Nominal length
in	MPa	in	mm	mm	kg/m	m
2	16	2 3/8	48	84	2.5	9.0
2	20	2 3/8	48	92	2.9	9.0
2 1/2	12	2 7/8	56	104	2.6	9.0
	14	2 7/8	56	104	3	9.0
	16	2 7/8	56	104	3.5	9.0
	20	2 7/8	56	104	4.2	9.0
3	17	3 1/2	62	107	4.2	8.7
	20	3 1/2	62	107	4.4	8.7
	20	3 1/2	62	120	6	8.7

Note:

This parameter is only a general introduction of our products, it is a design parameter based on the situation of specific materials and technology level, and cannot be used as the basis for acceptance of the products.

In addition, our products are not limited to the above specifications, and can be designed and produced according to customer needs.

◣ Application description:

Suitable for cage water injection wells, sewage recharge wells, poly injection wells, etc.

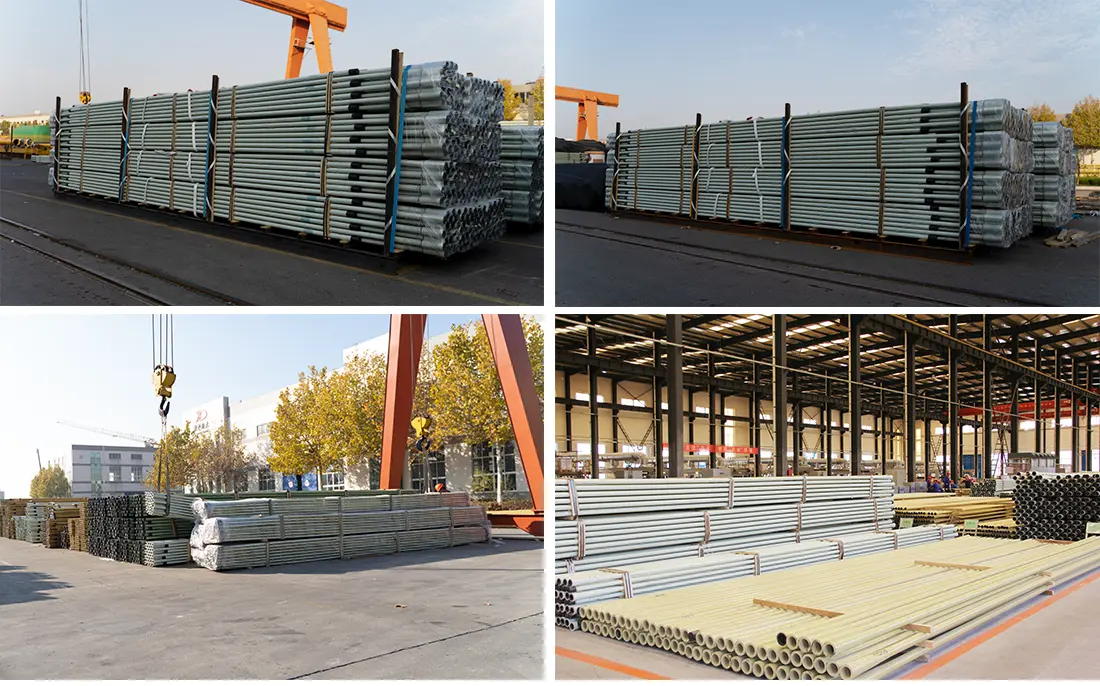

◣ Product Warehouse

◣ Enterprise Strength

Shengli Xinda New Material Co., Ltd. (hereinafter referred to as "Shengli Xinda Company") is a high-tech enterprise in the field of new materials, involving two major industries: composite material industry and anti-corrosion industry. Its markets are found in PetroChina, Sinopec, municipal field, military industry, coalbed methane, electricity, marine, rail transit, spaceflight etc..

◣ Enterprise ualification

Shengli Xinda Company is the top three comprehensive strength enterprise of composite material published by CCIA, the champion of composite material pipes accredited by the Ministry of Industry and Information Technology of the People's Republic of China, the National Intellectual Property Demonstration Enterprise and is one of the winners of the 5th Dongying mayor quality award. Shengli Xinda Company has CNAS national accredited laboratory and many provincial technology R&D platforms such as provincial demonstration engineering technology research center, engineering technology center, enterprise technology center and post-doctoral innovation practice base. In recent years, the company has not only undertaken 6 national-level science and technology projects, more than 60 provincial-level and Sinopec-level science and technology projects, and more than 50 city-level and Shengli Oilfield-level science and technology projects, but also dominated and participated in compiling 9 national-level technical standards. The company is an AA level enterprise of credit audit rating from Commercial Credit Center, a trustworthy enterprise with standardized good behavior of Shandong Province. The company has passed API certification of American Petroleum Institute, GJB certification, ISO, CCS certification. “Xinda” trademark is the national famous trademark.
