FRP Integrated Prefabricated Pump Stations

It is an assemblage of FRP barrel, submersible sewage pump, integrated pipe network and automated control system, used for slow storage and the lifting of city sewage, rainwater, etc..

MOQ: No minimum order quantity

Price: Negotiable

Delivery Time: 20-25 days

Payment: TT, L/C

Supply Ability: 1000000 pcs/ month

Classification：

Tank

Whatsapp
Email
Inquiry

BACK

Description

It is an assemblage of FRP barrel, submersible sewage pump, integrated pipe network and automated control system, used for slow storage and the lifting of city sewage, rainwater, etc..

◣ Scope of Production

Diameter ≥ 1m; capacity ≥ 5m3 ;

Can be designed and customized according to customers' requirements.

◣ Product Standards

HG/T 20696-2018 Technical Code of Reinforced Plastics equipment for Chemical Industry

Q/SXD 053-2018 Glass Fiber Reinforced Thermosetting Resin Integrated Pumping Station

◣ Product Characteristics
● Corrosion resistance, long service life;

● High integration, small footprint;

● Short construction period and low comprehensive cost.

◣ Application

Municipal water supply and drainage, sewage treatment and other areas.

◣ Parameter

Diameter	Height	Volume
mm	mm	m³
1200	6000	7
1600	6000	12
2000	6000	18
2500	8000	40
3000	8000	56
3800	10000	110
6500	10000	330

Note: the above specification parameters are for reference only, and can be customized according to customer's requirements.

The integrated pump station with diameter ≥ 4000mm can be made and assembled on site.

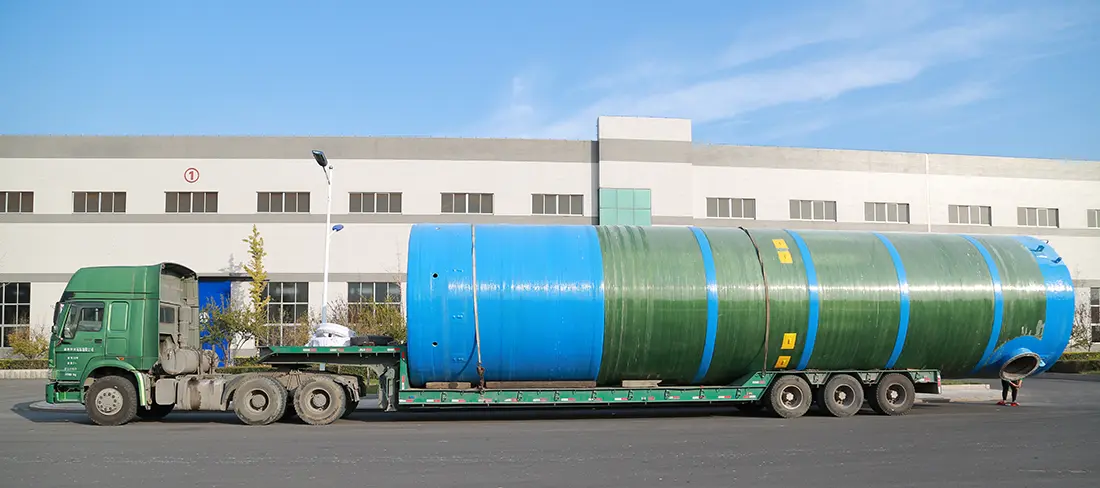

◣ Packing and shipping

◣ Enterprise Strength

Shengli Xinda New Material Co., Ltd. (hereinafter referred to as "Shengli Xinda Company") is a high-tech enterprise in the field of new materials, involving two major industries: composite material industry and anti-corrosion industry. Its markets are found in PetroChina, Sinopec, municipal field, military industry, coalbed methane, electricity, marine, rail transit, spaceflight etc..

◣ Enterprise ualification

Shengli Xinda Company is the top three comprehensive strength enterprise of composite material published by CCIA, the champion of composite material pipes accredited by the Ministry of Industry and Information Technology of the People's Republic of China, the National Intellectual Property Demonstration Enterprise and is one of the winners of the 5th Dongying mayor quality award. Shengli Xinda Company has CNAS national accredited laboratory and many provincial technology R&D platforms such as provincial demonstration engineering technology research center, engineering technology center, enterprise technology center and post-doctoral innovation practice base. In recent years, the company has not only undertaken 6 national-level science and technology projects, more than 60 provincial-level and Sinopec-level science and technology projects, and more than 50 city-level and Shengli Oilfield-level science and technology projects, but also dominated and participated in compiling 9 national-level technical standards. The company is an AA level enterprise of credit audit rating from Commercial Credit Center, a trustworthy enterprise with standardized good behavior of Shandong Province. The company has passed API certification of American Petroleum Institute, GJB certification, ISO, CCS certification. “Xinda” trademark is the national famous trademark.
