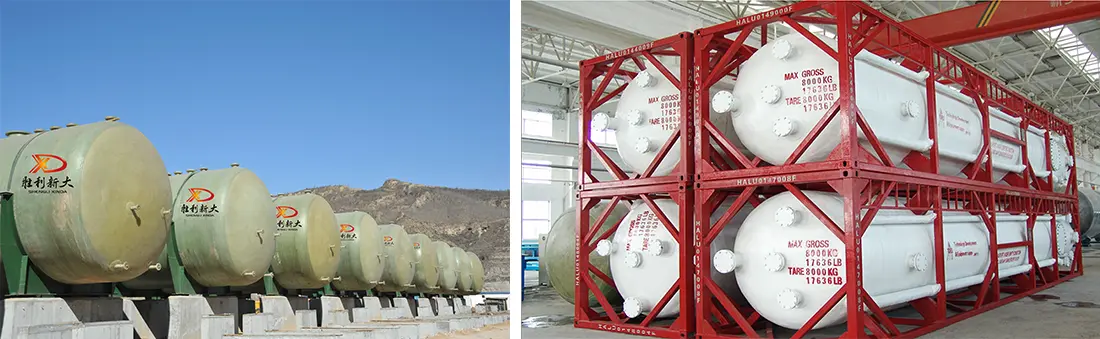

Small GRP Storage Tanks

GRP vessels are fabricated in shops by filament winding, jetting molding, contact molding with fiberglass and its products as the reinforcing materials and resin as the base material.

MOQ: No minimum order quantity

Price: Negotiable

Delivery Time: 20-25 days

Payment: TT, L/C

Supply Ability: 1000000 pcs/ month

Classification：

Tank

Whatsapp
Email
Inquiry

BACK

Description

GRP vessels are fabricated in shops by filament winding, jetting molding, contact molding with fiberglass and its products as the reinforcing materials and resin as the base material.

◣ Scope of Production

Diameter ≤ 4m; capacity ≤ 150m³ ;

Can be designed and customized according to customers' requirements.

◣ Product Standards

JC/T 587—2012 Filament Wound Glass Fiber Reinforced Thermosetting Resin Corrosion Resistant Vertical Tanks

JC/T 718—2012 Filament Wound Glass Fiber Reinforced Thermosetting Resin Corrosion Resistant Horizontal Tanks

◣ Product Characteristics
● Corrosion resistance and long service life;
● Light weight, easy construction and installation;
● Small thermal conductivity, good thermal insulation performance.

◣ Application

Petroleum, chemical industry, medicine, food brewing and other fields.

◣ Parameter

Diameter	Volume	Length	Diameter	Volume	Length
mm	m³	mm	mm	m³	mm
1800	10	4080	3200	30	4000
	15	6050		40	5250
	20	8010		50	6490
2200	15	4130	3600	40	4230
	20	5450		50	5210
	30	8080		60	6200
2600	30	5870	4000	60	5110
	35	6810		80	6700
	40	7750		100	8290

Note: the above specification parameters are for reference only, and can be customized according to customer's requirements.

◣ Enterprise Strength

Shengli Xinda New Material Co., Ltd. (hereinafter referred to as "Shengli Xinda Company") is a high-tech enterprise in the field of new materials, involving two major industries: composite material industry and anti-corrosion industry. Its markets are found in PetroChina, Sinopec, municipal field, military industry, coalbed methane, electricity, marine, rail transit, spaceflight etc..

◣ Enterprise ualification

Shengli Xinda Company is the top three comprehensive strength enterprise of composite material published by CCIA, the champion of composite material pipes accredited by the Ministry of Industry and Information Technology of the People's Republic of China, the National Intellectual Property Demonstration Enterprise and is one of the winners of the 5th Dongying mayor quality award. Shengli Xinda Company has CNAS national accredited laboratory and many provincial technology R&D platforms such as provincial demonstration engineering technology research center, engineering technology center, enterprise technology center and post-doctoral innovation practice base. In recent years, the company has not only undertaken 6 national-level science and technology projects, more than 60 provincial-level and Sinopec-level science and technology projects, and more than 50 city-level and Shengli Oilfield-level science and technology projects, but also dominated and participated in compiling 9 national-level technical standards. The company is an AA level enterprise of credit audit rating from Commercial Credit Center, a trustworthy enterprise with standardized good behavior of Shandong Province. The company has passed API certification of American Petroleum Institute, GJB certification, ISO, CCS certification. “Xinda” trademark is the national famous trademark.
