Flexible Composite Pipes For High Pressure Transmission

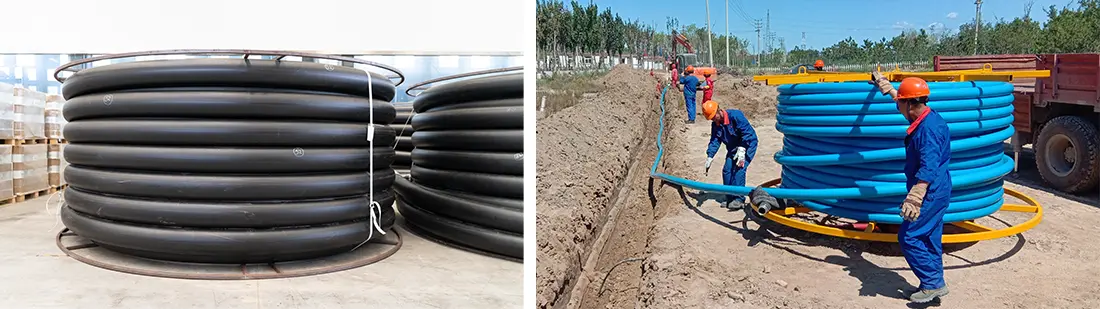

Flexible composite pipes for high pressure transmission are made of glass fiber ribbon and polyester yarn as reinforcement materials and thermoplastic resin as matrix material by extrusion and winding process.

MOQ: No minimum order quantity

Price: Negotiable

Delivery Time: 20-25 days

Payment: TT, L/C

Supply Ability: 1000000 pcs/ month

Classification：

Pipe

Whatsapp
Email
Inquiry

BACK

Description

DN40-DN150;Pressure rating：0-25MPa

Polyester yarn reinforced flexible pipes

DN40-150;Pressure rating：0-25MPa

Cable laying composite coiled tubing

DN40-80;Pressure rating：0-25MPa

Can be designed and customized according to customers' requirements.

◣ Product Standards
API 15S Spoolable Reinforced Plastic Line Pipe

API 17B Recommended Practice for Flexible Pipe

SY/T 6662.2-2020 Non-metallic Composite for Petroleum and Natural Gas Industries-Flexible Composite Pipe for High

◣ Pressure Transmission

Q/SXD 083-2019(Glass Fiber Ribbon) Flexible Composite High Pressure Conveying Pipe

◣ Product Characteristics
Corrosion resistance, anti-static, wear resistance, good air tightness.

◣ Application description:

Petroleum, natural gas, coal mine, etc..

◣ Parameter

Min.AVG ID	Pressure rating	Min. thickness	Minimum storage bending radius
mm	MPa	mm	mm
40	25	11	550
40	2.5	8.0	550
50	25	13	600
50	2.5	8.5	600
65	25	16	850
65	2.5	9.5	850
80	20	16	950
80	2.5	10	950
100	16	18.5	1050
100	2.5	11	1050
125	10	17.5	1200
125	2.5	13.5	1200
150	6.4	16.5	1600
150	2.5	14	1600

◣ Enterprise Strength

Shengli Xinda New Material Co., Ltd. (hereinafter referred to as "Shengli Xinda Company") is a high-tech enterprise in the field of new materials, involving two major industries: composite material industry and anti-corrosion industry. Its markets are found in PetroChina, Sinopec, municipal field, military industry, coalbed methane, electricity, marine, rail transit, spaceflight etc..

◣ Enterprise ualification

Shengli Xinda Company is the top three comprehensive strength enterprise of composite material published by CCIA, the champion of composite material pipes accredited by the Ministry of Industry and Information Technology of the People's Republic of China, the National Intellectual Property Demonstration Enterprise and is one of the winners of the 5th Dongying mayor quality award. Shengli Xinda Company has CNAS national accredited laboratory and many provincial technology R&D platforms such as provincial demonstration engineering technology research center, engineering technology center, enterprise technology center and post-doctoral innovation practice base. In recent years, the company has not only undertaken 6 national-level science and technology projects, more than 60 provincial-level and Sinopec-level science and technology projects, and more than 50 city-level and Shengli Oilfield-level science and technology projects, but also dominated and participated in compiling 9 national-level technical standards. The company is an AA level enterprise of credit audit rating from Commercial Credit Center, a trustworthy enterprise with standardized good behavior of Shandong Province. The company has passed API certification of American Petroleum Institute, GJB certification, ISO, CCS certification. “Xinda” trademark is the national famous trademark.
